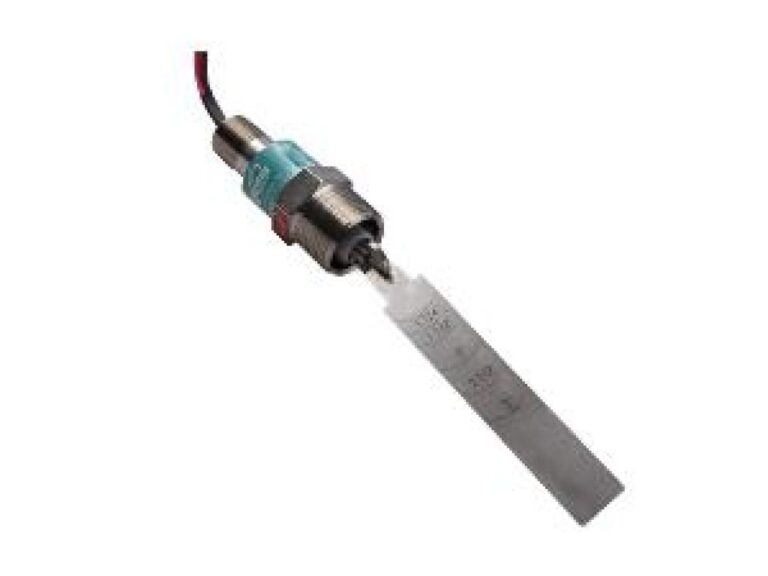

FS-550 Series Flow Switch

FS-550 Series Flow Switches sense liquid flow in either direction to monitor flow/no-flow conditions and are supplied in two paddle lengths. The paddle is trimmed during installation to permit switch actuation at the desired flow rate. As flow increases, the paddle of the switch pivots to move out of the liquid path, producing less than 3 psig (.21 bar) of pressure drop regardless of pipe size. Applications include: compressors, heat exchangers, turbines, engines, boilers, chillers, valves, pumps and regulators.
Engineered for Positive Liquid Flow Detection at Pressures to 2000 psig (137.9 bar)
Unique; Patented Cam Design Assures Low Pressure Drop and Does not Require Bellows; Seals; or Mechanical Linkages
Minimum In-Line Restriction; Paddle Pivots to Move
Out of Liquid Path with Increasing Flow
Line Size: 1 1/4" and up
Primary Construction Material: Stainless Steel or Brass
Setting Type: Fixed
