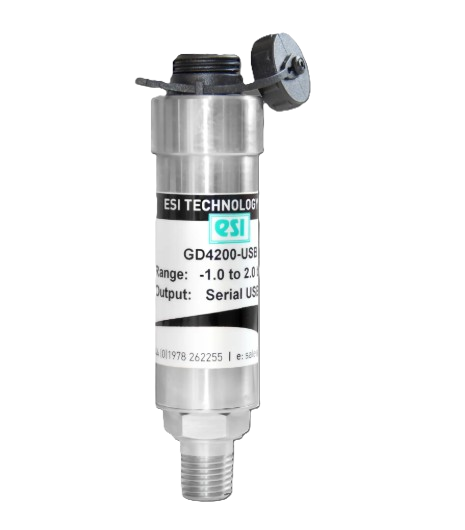

USB Enabled Pressure Transmitter
- The Dynamic GD4200-USB© Digital Pressure Transducer has been carefully designed to measure, analyse, and record pressure directly on your computer, eliminating the need for costly I/O interface boards. Moreover, it enables users to measure up to 16 pressure inputs simultaneously while also providing the ability to effortlessly create customized test certificates. In addition, the product delivers versatile pressure measurement capabilities, with ranges spanning from vacuum to 5,000 bar. It incorporates Silicon-on-Sapphire sensor technology, renowned for its exceptional accuracy and durability, while offering a sample rate that can be adjusted via software, up to 1,000 Hz. Furthermore, the device allows users to record data from multiple inputs simultaneously and simplifies the creation of custom test certificates. The included ESI-USB© software, which benefits from automatic updates, ensures smooth operation and seamless integration. To enhance reliability, automatic temperature compensation is provided, and the device supports applications developed in C#, VB, LabView, and Excel VBA through an API DLL library. For added convenience, it comes equipped with a 2-meter lead and a carry case.
- Standard pressure ranges: -1 to 2.5 bar; 0 – 16 bar; 0 – 100 bar; 0 – 400 bar; 0 – 1,000 bar; 0 – 1,500 bar; 0 – 2,000 bar; 0 – 4,000 bar, 0 – 5,000 bar
- Typical applications include: Test & measurement applications Pipeline leak test environments Digital pressure measurement Aerospace applications General industrial environments
